RUTH IE-02 High Pressure Portable Injection Grouting Pump (Smart Pressure Control)
| Place of Origin: | SHANGHAI, CHINA |
| Brand Name: | RUTH |
| Model Number: | IE-03/IE-01/IE-2 |
| Certification: | |
| Minimum Order quantity | 1 Set |
| Package Details | 49*22*46CM |
| 8.5kgs/Carton | |
| Delivery Time | 7 to 15 days |
| Payment Term | T/T, L/C, paypal,western union |
| Production | 1000 Sets Per Month |
- Overview
- Recommended Products
Quick Detail:
Different Names: High Pressure Injection Machine&Pump/Single Components injection machine/Powerful single component injection pump/PU Grouting Machine
RUTH IE-02 is a professional electric injection grouting machine featuring an Automatic Pressure Relief Valve. Max 10,000 psi. Ideal for PU foam and epoxy injection in tunnels and basements.
Description
The RUTH IE-02 is our advanced, professional-grade electric injection grouting machine, specifically engineered for precision and safety. Unlike standard pumps, the IE-02 features an Integrated Adjustable Pressure Valve, allowing operators to pre-set the working pressure. If pressure exceeds the limit, the system automatically relieves it, protecting both the machine and the concrete structure.
Compact yet powerful, this polyurethane foam grouting injection machine generates up to 10,000 psi (70 MPa), making it capable of pushing high-viscosity structural epoxy resin or expanding PU foam into hairline cracks as fine as 0.02mm.
Key Features & Advantages
Smart Pressure Management (IE-02 Exclusive): The built-in adjustable valve ensures the operating pressure never exceeds your safe limit. This prevents "blowouts" and significantly extends the pump's lifespan compared to basic models.
Precision-Engineered Casing: Crafted from high-strength alloy steel via high-pressure die-casting. No cheap welding spots—just a solid, durable body.
Automotive-Grade Components:
Wear-Resistant Piston: Made from a specialized bronze alloy with rare metals for long-lasting performance.
Heat-Treated Crankshaft: Forged and quenched to prevent breakage under heavy load.
Optimized Gears: High-quality alloy steel gears ensure smooth transmission and reduced noise.
Reinforced High-Pressure Hose: Our pu grout hose connector is made from seamless steel and is 3x stronger than standard welded joints, ensuring safety at 10,000 psi.
Drill Options: Available with a premium Metabo Electric Drill or the cost-effective RUTH Electric Drill to suit your budget.
Model-Specific Features

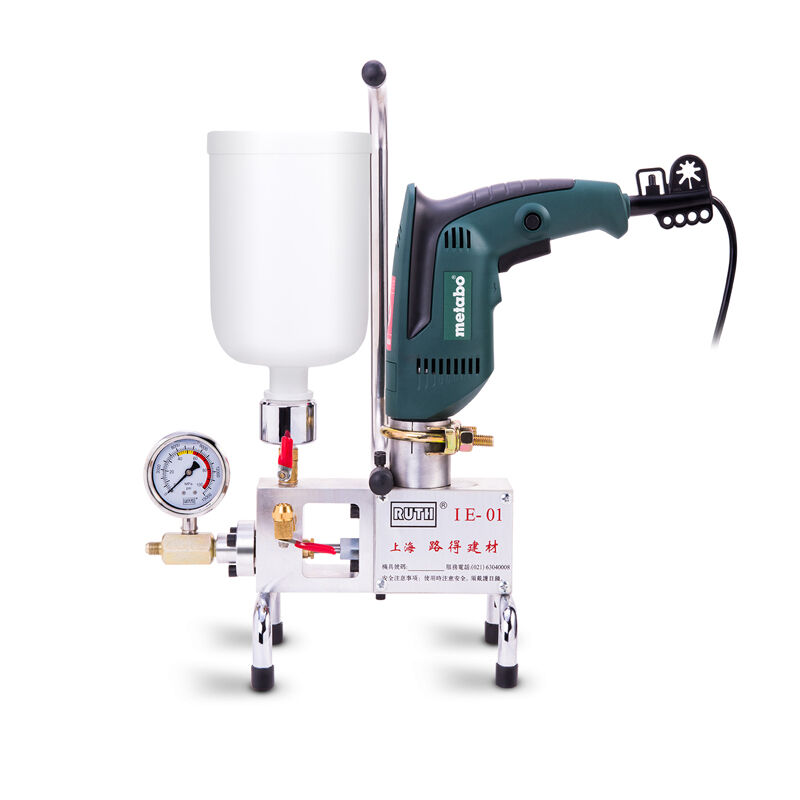

· IE-01 Hose-Fed High-Pressure Injection Machine:
Hose-Fed Direct Suction: This innovative design eliminates the need for manual pouring by allowing the machine to draw grouting material directly from its container via a suction hose, enhancing efficiency and reducing mess.
· IE-02 High-Pressure Portable Injection Grouting Pump:
Integrated Adjustable Pressure Valve: A key safety feature that allows the working pressure to remain under a pre-set value, automatically relieving pressure in case of an over-pressure situation to enhance system longevity.
· IE-03 PU & Epoxy Injection Pump:
Basic Edition: Our most popular professional-grade model, capable of generating sufficient pressure to inject materials into hairline cracks as fine as 0.02mm.
Specifications at a Glance
| Feature | IE-01 | IE-02 | IE-03 |
| Gross Weight | 9 Kgs / 20Lbs. | 9 Kgs / 20Lbs. | 9 Kgs / 20Lbs. |
| Maximum Output Pressure | 70MPa / 10,000 Psi | 70MPa / 10,000 Psi | 70MPa / 10,000 Psi |
| Operating Pressure | NOT exceed 50 MPa | NOT exceed 50 MPa | NOT exceed 50 MPa |
| Pressure of Restarting | Less than 20 MPa / 2,900 Psi | Less than 20 MPa / 2,900 Psi | Less than 20 MPa / 2,900 Psi |
| Safe Range of High-Pressure Hose | Less than 70 MPa / 10,000 Psi | Less than 70 MPa / 10,000 Psi | Less than 70 MPa / 10,000 Psi |
| Safe Range of Switch Valve | Less than 50 MPa / 7,250 Psi | Less than 50 MPa / 7,250 Psi | Less than 50 MPa / 7,250 Psi |
Application and Use
Materials of Application:
· Hydrophilic Polyurethane (WPU)
· Hydrophobic Polyurethane (OPU) foam stop leakage agent
· Epoxy Resin
Primary Applications
The IE-02 is the "workhorse" for waterproofing and structural repair contractors:
Leak Sealing: Stopping active water leaks in subway stations, tunnels, and culverts using hydrophilic/hydrophobic polyurethane grout.
Crack Repair: Injecting epoxy injection resin into basement hairline cracks, construction joints, and top slabs.
Soil & Void Filling: Suitable for foundation improvement and soil settlement projects (concrete crack injection repair).
Construction Guide:
1. Clean Cracks: Thoroughly clean the surface, removing loose debris.
2. Drill Packers: Drill holes at appropriate intervals (e.g., every 30cm) along the crack.
3. Bury & Lock Up Packers: Insert and secure the injection packers.
4. Connect Packer with Zerk: Attach the high-pressure hose to the packer.
5. Grouting Process: Begin injecting the chosen grout.
6. Remove Extravasations: The next day, remove any excess cured material.
7. Wash Machine: Clean the machine thoroughly with Toluene or Acetone.
8. Lubricate Machine: Perform final lubrication with engine oil for proper maintenance and storage.
Important Use Guide
1. Pre-Operation Check: Ensure all screws are tight and the high-pressure hose is securely connected without leakage.
2. Pressure Management: The maximum pressure is approximately 10000 psi (70 MPa). Be mindful of the packer's pressure resistance.
3. Material Compatibility: This machine is suitable for polyurethane water stoppers. Do NOT use materials containing cement or sand.
4. Testing Fluid: Use machine oil or hydraulic oil for testing. Do not use low-viscosity liquids or water.
5. Operating Pressure: The working pressure should not exceed 50 MPa to prevent overload and damage.
6. Restart Prohibition: Do not restart the machine if the pressure is above 40 MPa. Restarting is only permitted when the pressure drops below 20 MPa.
7. Safety First: Always wear a safety helmet, safety goggles, a working uniform, and a safety mask during operation.
Maintenance & Troubleshooting (Pro Tips)
Cleaning is Critical: After use, immediately circulate acetone or xylene (approx. 200ml) for 5 minutes to remove residual grout. Never use water.
Valve Care: If pressure is low, check the steel ball and spring in the piston. Clean any cured material or sand blockage.
Lubrication: Store the machine with hydraulic oil inside the pump to prevent rust and seal drying.
What's in the Box? (Full Set)

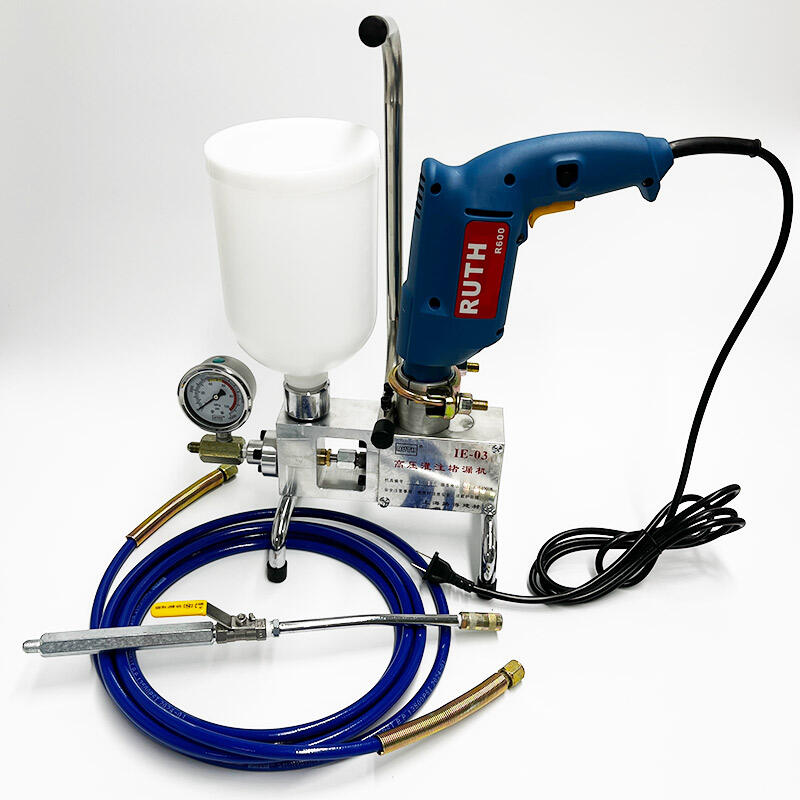

1. IE-02 Injection Machine Body (with Pressure Valve)
2. Electric Drill (Metabo or RUTH brand)
3. High-Pressure Hose (4.5m)
4. Switch Valve Assembly (Gun)
5. High Pressure Grease Coupler (Zerk type)
6. Remote Control Wire(optional) & Repair Kits
7. Material Relief Hose (Special for IE-02)
 |
 |
 |
 |

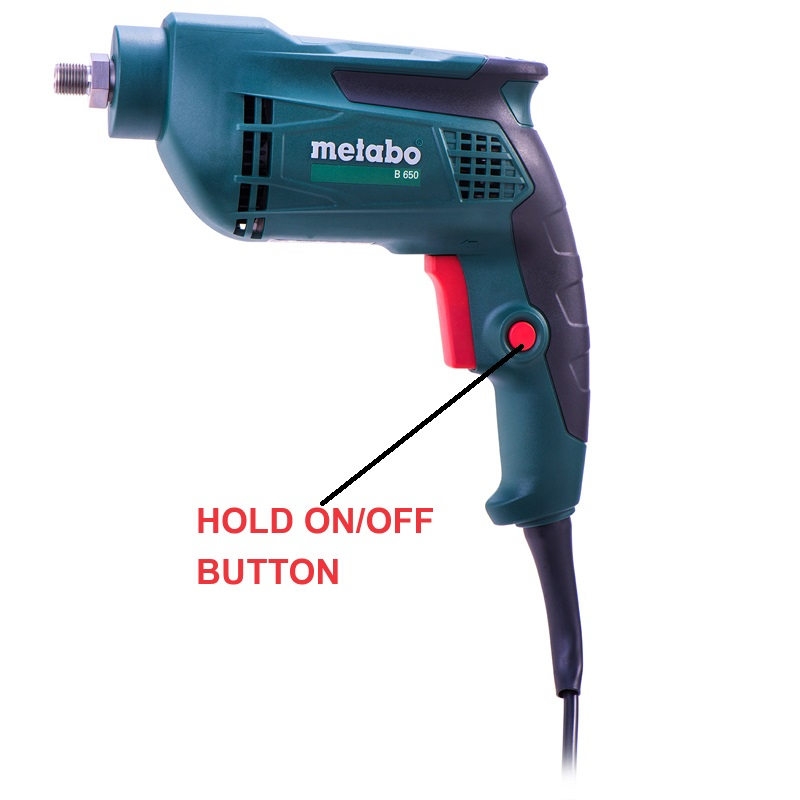

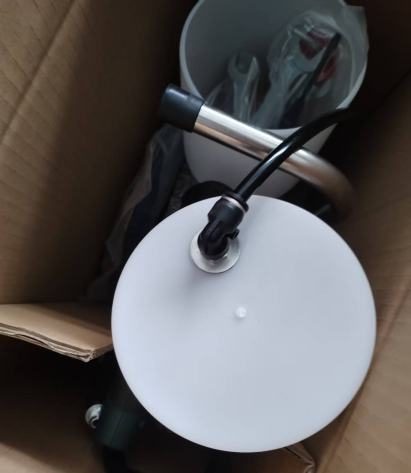

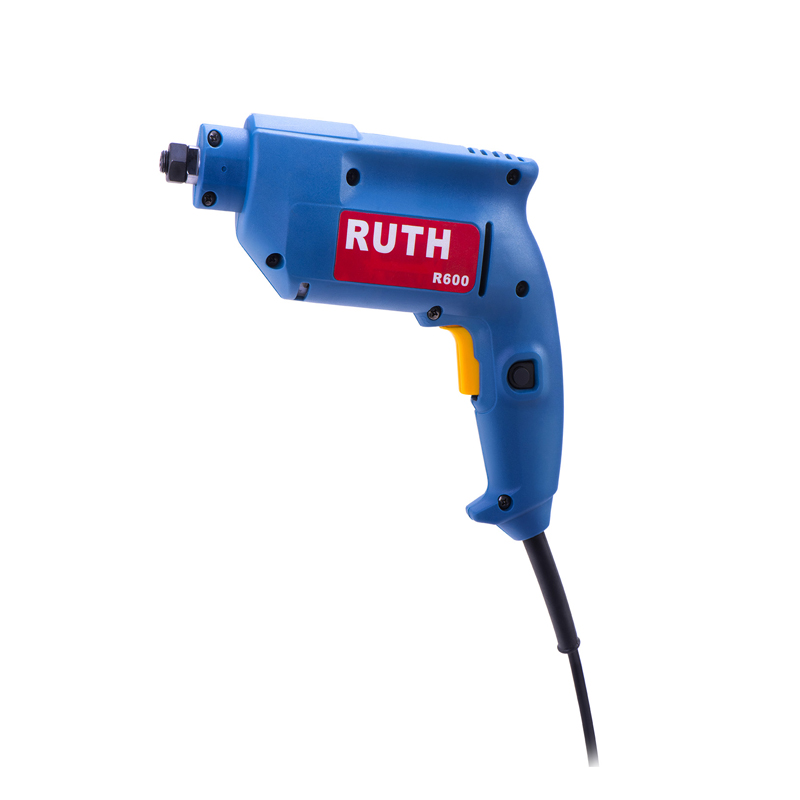

| Metabo Electric Drill | Ruth Electric Drill |

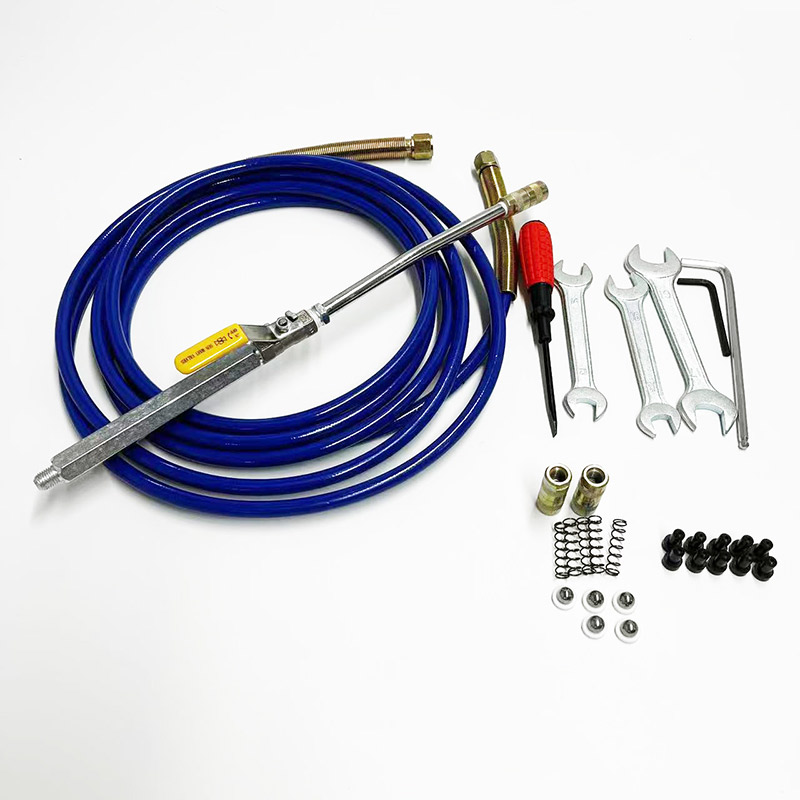

Standard Spare Parts, Standby tool and repair kits |

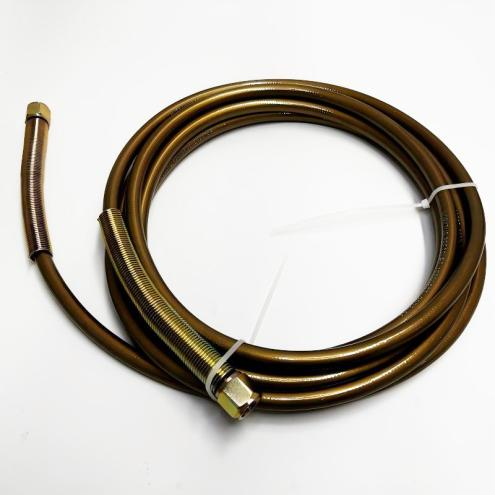

Golden Color High pressure hose(for optional) |
Other Spares Parts Available for Purchase
 |
 |

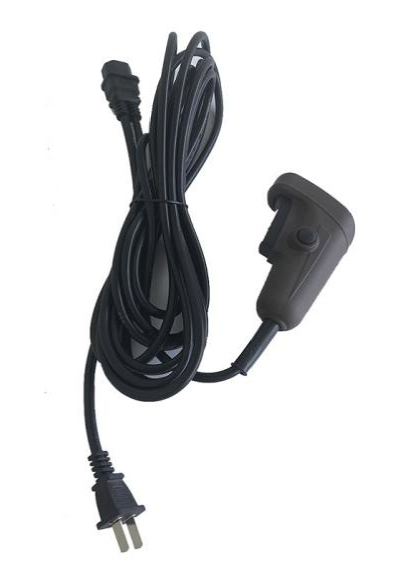

| Remote Control Wire |

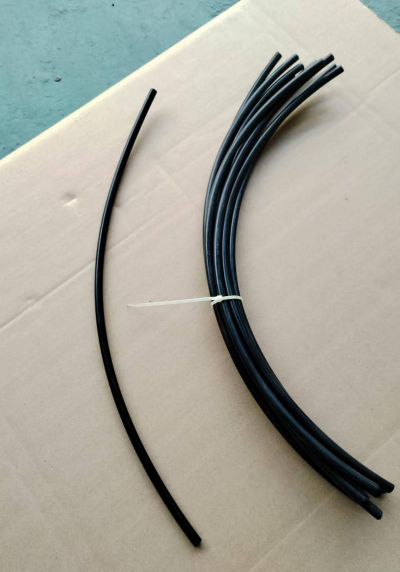

Material Relief Hose ( Special for IE-02) |
Warranty
Products are warranted for 3 months from the date of transaction. This warranty excludes damage due to transportation, misuse, deliberate damage, improper construction environment/electricity, or unauthorized modification/repair. For issues exceeding the 3-month warranty, maintenance services are available, but a charge for accessories will apply. The warranty does not cover artificial damage.
Transportation Packing
Packing Size: 46*22*49 cm / Carton
1 Set/Carton
20Carton/Pallet
 |
 |
 |
| Environment Friendly Package | ||
Call to Action
Upgrade to Smart Pressure Control Don't risk machine failure on critical jobs. Choose the RUTH IE-02 for safety and durability. Manufacturer Direct Supply – 1000 Sets/Month Capacity.
