RUTH High-Strength Reinforcement Grouting Material (52MPa Bonding Resin)
|
Place of Origin: |
SHANGHAI, CHINA |
|
Brand Name: |
RUTH |
|
Model Number: |
EP-02 |
|
Minimum Order quantity |
100 KGS |
|
Package Details |
20kgs+4KGS/Group or Customized |
|
Delivery Time |
7 to 15 days |
|
Payment Term |
T/T, L/C, paypal, western union |
|
Annual Production |
5000 Tons |
- Overview
- Recommended Products
Quick Detail:
1. Different names:
Two-components modified Reinforce Polyurethane Grouting material/ Two-Component Tile Grout/Tile Grout
2. Main uses:
RUTH Reinforcement Grouting Material is a 52MPa high-strength, low-viscosity resin designed for repairing hollow tiles, floor delamination, and concrete bonding
3. Extreme Performance:
52MPa Compressive Strength
Description:
RUTH EP-03 Reinforcement Grouting Material is a high-performance, low-viscosity injection resin designed for general reinforcement and void filling. With a compressive strength of 52 MPa, it creates a bond that is stronger than standard concrete.
Unlike soil stabilization foams used for heavy foundation lifting, this material is engineered for precision bonding. It flows easily into narrow gaps to repair hollow tiles, floor delamination, and cracks in masonry or concrete structures, restoring solidity without removing the existing finish.
Key Features:
High Compressive Strength (52 MPa): Provides exceptional load-bearing capacity, exceeding that of typical C30/C40 concrete.
Ultra-Low Viscosity: Penetrates micro-voids beneath tiles and screeds to ensure 100% contact coverage.
Strong Adhesion: Bonds aggressively to concrete, ceramic, stone, and masonry (epoxy bond grout).
Non-Shrink: Cures to a hard solid without shrinking, ensuring the hollow sound does not return.
Primary Applications:
Hollow Tile Repair: Injecting beneath loose or hollow-sounding tiles to re-bond them to the substrate without replacement.
Floor Delamination: Repairing separation between the screed and the base concrete (concrete floor repair).
General Structural Reinforcement: Strengthening masonry walls, columns, and beams where high strength is required but heavy soil lifting is not needed.
Crack Filling: Filling static cracks in industrial floors and walls.
Technical Specifications
NO. |
TEST ITEM |
UNIT |
Standard Index |
Tested Value |
Sample Test (A: 2KGS, B:2KGS) |
||||
1 |
Appearance |
A Uniform liquid, no impurities, |
A Uniform liquid, no impurities, |
|
2 |
Appearance |
B Uniform liquid, no impurities, |
A Uniform liquid, no impurities, |
|
3 |
Compressive Strength |
MPa |
≥40 |
52 |
Source of test result data: Measured values by China Building Material Test & Certification Group in 2023. Executive Standard JC/T1041-2007 (2017) ‘Epoxy Grouting Material for Concrete Cracks’.

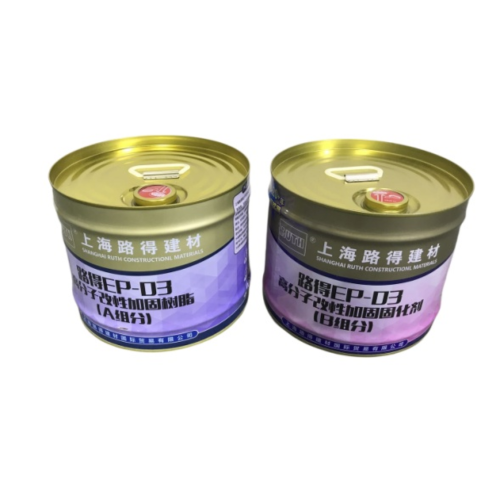

| Product Color | Drum Details |
 |
 |
Packaging & Storage
1. Stored in a clean, dry, and tightly sealed iron drum, the volume can be customized according to customer needs.
2. During transportation, prevent rain, exposure, squeezing, and collision to ensure that the packaging remains intact.
3. The product should be stored in a ventilated, dry, and cool place to prevent direct sunlight and rain. The storage temperature should not exceed 40℃.
4. Under normal storage conditions, the shelf life is 6 months.
Usage Note:
Suitable for: Indoor/Outdoor structural bonding, hollow tiles, screed repair.
Not Suitable for: Heavy-duty underground parking lot soil stabilization or lifting sunken slabs (for these applications, please use our Hydrophobic Polyurethane Grout).
Comparison : RUTH EP-02 vs. RUTH EP-03
EP-02 is a Structural Adhesive designed to "weld" cracked concrete back into a monolithic structure.
EP-03 is a Reinforcement & Bonding Agent designed to fill voids, repair hollow tiles, and re-bond delaminated layers
Technical Specifications Comparison
Feature |
RUTH EP-02 |
RUTH EP-03 |
Product Name |
Structural Epoxy Resin Grouting |
High-Strength Reinforcement Grouting |
Compressive Strength |
≥ 110 MPa (Extreme) |
52 MPa (High) |
Mixing Ratio (Weight) |
5 : 1 (A:B = 100:20) |
1 : 1 (A:B = 10:10) |
Packaging |
20kg + 4kg Set |
10kg + 10kg Set |
Viscosity |
Low (Penetrates 0.05mm cracks) |
Ultra-Low (Water-like penetration) |
Primary Function |
Structural Restoration: Restores load-bearing capacity. |
Void Filling & Bonding: Eliminates hollow sounds and re-bonds layers. |
Detailed Key Differences
A. Strength & Performance
EP-02 (The Structural Titan): With a compressive strength of ≥110 MPa, it is more than twice as strong as standard high-grade concrete (C40/C50). It is designed to withstand extreme structural loads and tensile forces.
EP-03 (The Precision Bonder): With a strength of 52 MPa, it is stronger than standard concrete (C30) but is engineered for bonding rather than extreme load-bearing. It is rigid enough to solidify loose masonry or flooring but optimized for filling voids.
B. Target Applications
EP-02 Use Cases (Critical Infrastructure):
Repairing structural cracks in bridges, dams, and highways.
Reinforcing load-bearing beams and columns after earthquake damage.
Any scenario where the safety of the structure is at risk.
EP-03 Use Cases (Renovation & Maintenance):
Hollow Tile Repair: Injecting beneath loose tiles to re-bond them without removing the floor.
Floor Delamination: Fixing separation between the screed and the base concrete slab.
General Reinforcement: Consolidating loose masonry walls or general concrete voids.
C. Application Method
EP-02: Requires a strict 5:1 mixing ratio. Typically applied using single-component injection pumps (pre-mixed) by professional structural engineers.
EP-03: Features a convenient 1:1 mixing ratio. This reduces mixing errors and allows for easier handling, making it suitable for general contractors and renovation teams.
One-Sentence Marketing Distinction
Sell EP-02 when: "The main beam of a building has cracked, or a bridge needs structural repair." (Safety Critical)
Sell EP-03 when: "The floor tiles sound hollow, or the warehouse floor screed is peeling off." (Maintenance & Finish)
