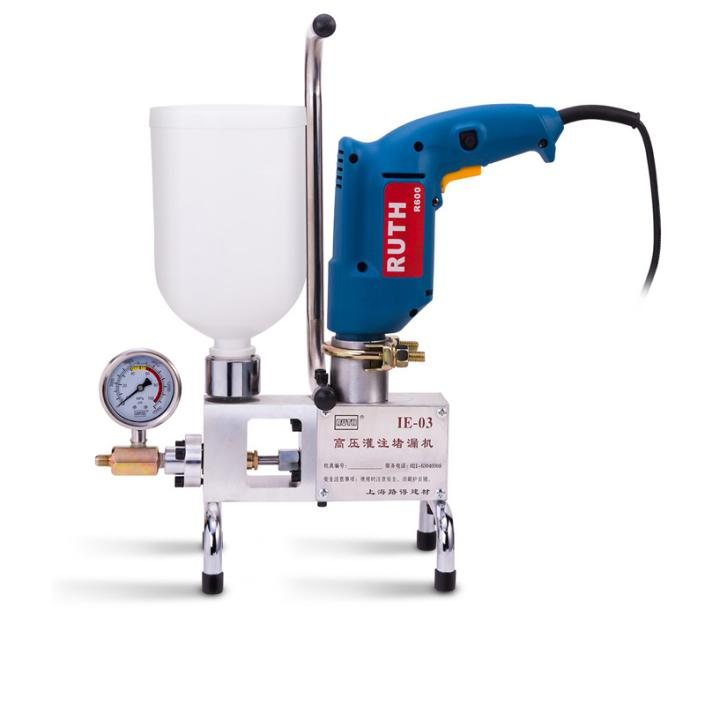

RUTH IE-03 PU & Epoxy Injection Pump
|
Place of Origin: |
SHANGHAI, CHINA |
|
Brand Name: |
RUTH |
|
Model Number: |
IE-03 |
|
Certification: |
|
|
Minimum Order quantity |
1 Set |
|
Package Details |
49*22*46CM |
|
|
8.5kgs/Carton |
|
Delivery Time |
7 to 15 days |
|
Payment Term |
T/T, L/C, paypal,western union |
|
Production |
1000 Sets Per Month |
- Overview
- Recommended Products
Quick Detail:
Different Names: High Pressure Injection Machine&Pump/Single Components injection machine/Powerful single component injection pump
Description:
The IE-03 Basic Edition is our most popular model, a professional-grade machine designed for injecting hydrophilic polyurethane (WPU), hydrophobic polyurethane (OPU), and epoxy resins. It generates sufficient pressure to inject materials into hairline cracks as fine as 0.02mm, making it ideal for waterproofing, water leakage sealing, and concrete crack repair. IE machines are renowned for their lightweight design, compact size, ease of operation and maintenance, and exceptional durability—making them the top choice for efficient workers
Materials of Application
Hydrophilic Polyurethane (WPU) and Hydrophobic Polyurethane (OPU) foam stop leakage agent, Epoxy Resin.
Application Field

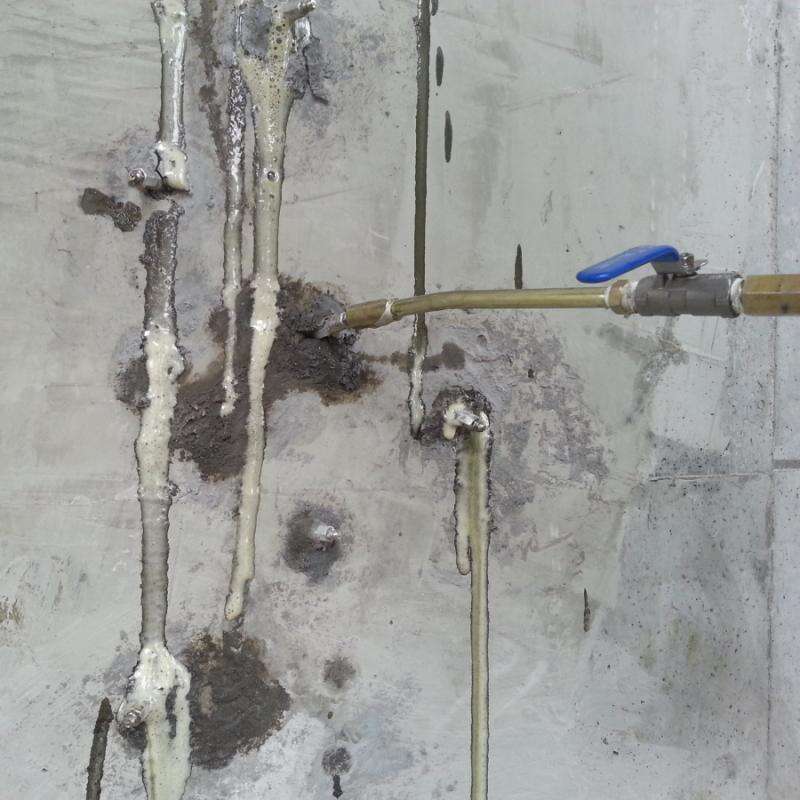

Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack, Construction Join, Shrinkage Crack, Basement Hairline Crack, etc.,water stop projects.
Specifications:
Weight |
9 Kgs / 20Lbs. |
Maximum Output Pressure |
70MPa / 10,000 Psi |
Pressure of Restarting |
Less than 20 MPa / 2,900 Psi |
Safe range of High-Pressure Hose |
Less than 70 MPa / 10,000 Psi |
Safe Range of Switch Valve |
Less than 50 MPa / 7,250 Psi |
Competitive Advantage: Competitive price with durable quality
Full Set Purchase Includes:
1) The Machine with Metabo or Ruth Electric Drill

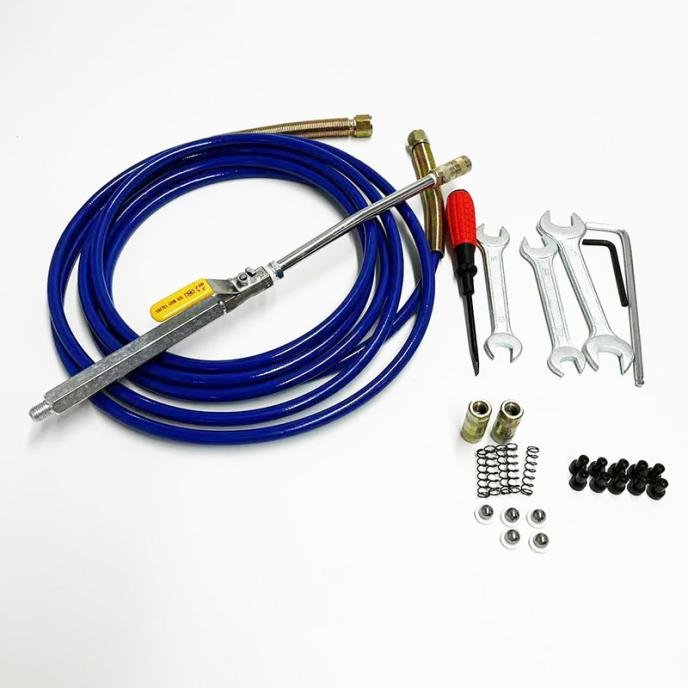

2) Accessories Parts: High-Pressure Hose (4.5 m), Connector, Coupler (Zerk)
3) Standby tools and Repair Kits

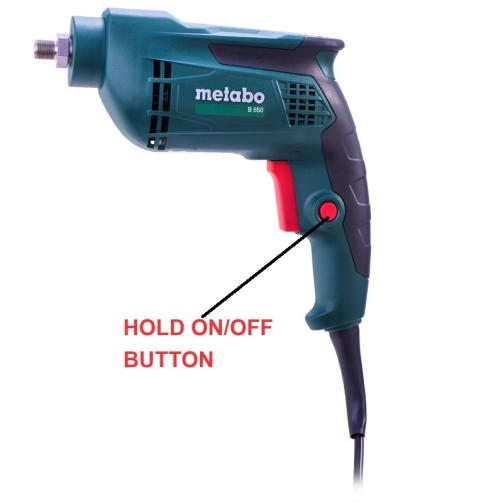

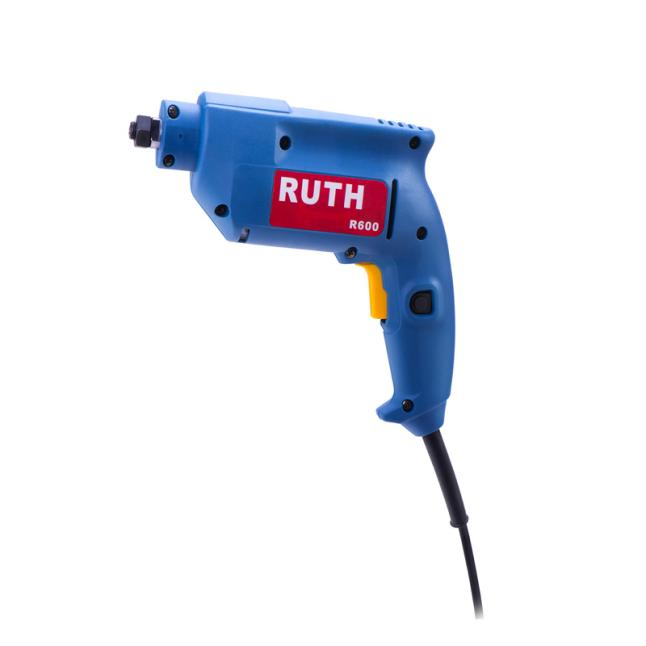

| Metabo Electric Drill | Ruth Electric Drill | Machine Parts, Standby tool and repair kits |
 |
 |
 |
|
Remote Control Wire (for optional, not Standard) |
Transportation Packing Packing Size: 46*22*49 cm / Carton 1 Set/Carton 20Carton/Pallet Environment Friendly Package |
 |
 |
